LOCOR Cutting Plotter T850/1100

date :2017-8-18 0:02:11hits :304author:郑州乐彩


PRODUCT  FEATURE:

       Stable product quality,Large files can be transferred by the 4M internal storage,scribing with fast speed,Black appearance,simple and elegant。

RANGE OF APPLICATION:

       Sticky note,Adhesive sticker label,Tapetum lucidum,Name sticker,Purikura etc.

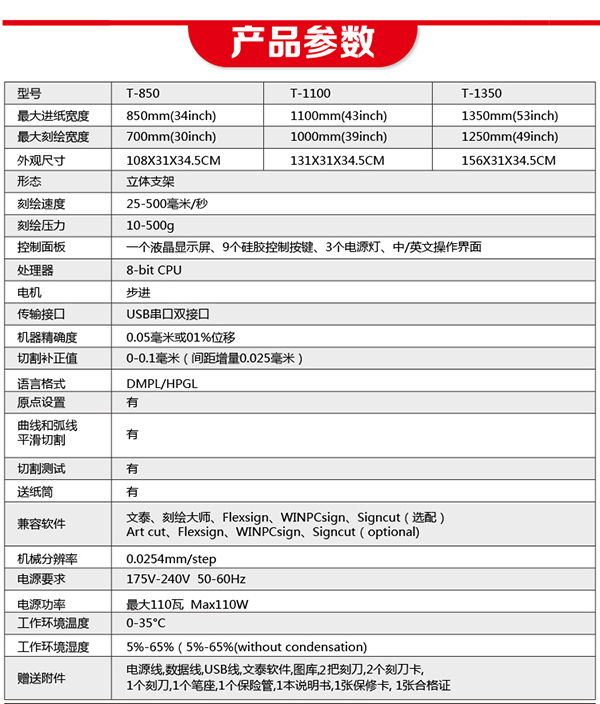

PRODUCT PARAMETER
MODET-850T-1100T-1350
MAX paper width850mm(34inch)1100mm(43inch)1350mm(53inch)
Max scribing width700mm(30inch)1000mm(39inch)1250mm(49inch)
Appearance size108*31*34.5CM131*31*34.5CM156*31*34.5CM
Formstereoscopic scaffolds
Scribing speed25-500mm/s
Scribing pressure10-500g
Control panelone LCD,nine Silicone control buttons,three power leds,Chinese/English operation interface
Processor8-bit CPU
Electrical machinerystepping
Transmission interfaceUSB Serial port dual interface
Machine accuracy0.05mm or 1% displacement
Correction value of incision0-0.1mm(spacing of incremental 0.025mm)
Language formatDMPL/HPGL
SetOriginhas
Curves and arcs Smooth cuttinghas
Cutting testhas
Send paper tubehas
Compatible softwareArtcut、Carved painting master、Flexsign、WINPCsign、Signcut(Optional)
Mechanical resolution0.0254mm/step
Power requirement175V-240V   50-60Hz
POWERMax:110w
Working temperature0-35℃
Working environment humidity5%-65% without condensation
Free accessorypower line、USB cable、artcut software、nicking tool etc














  Zhengzhou Locor Technology Co., Ltd. has a registered capital of 26 million RMB. The company has a young, efficient, united and innovative elite team, and an entrepreneurial environment that catches up with the international advanced level, leads the development of the Chinese industry.

 Locor pays attention to the research and application development of independent technology in the field of printing equipment,has established a company technology research and development center, equipped with advanced equipment and testing instruments with a good R&D experimental environment. The company's technical department cooperates with many research institutes at home and abroad, uses the current new micro-electromechanical and micro-electronic technology to conduct exploratory research and development. It is used in printer print head drive analysis, rack manufacturing, testing, control system design, trial production, etc. Unique insights and innovative inventions.

    Locor has applied for 51 patents related to digital printing equipment, including 3 invention patents; in 2008, the company was recognized as a high-tech enterprise by Henan Science and Technology Department, has passed the EU CE certification in 2008; in May 2010, Zhengzhou Development and Reform Commission Approved the establishment of Zhengzhou Digital Wide-format Printing Equipment Engineering Research Center and listed it in the National Twelfth Five-Year Plan for Electronic Information Industry; In June 2010, it officially started the shareholding system reform and became the first batch of new three-board enterprises in Zhengzhou High-tech Industrial Development Zone.

At present, Locorproducts and service organizations have covered more than 80 countries and regions in 31 provinces and cities in China and overseas; Locor are willing to work together with friends in the industry to provide satisfactory products and services for domestic and foreign customers!
